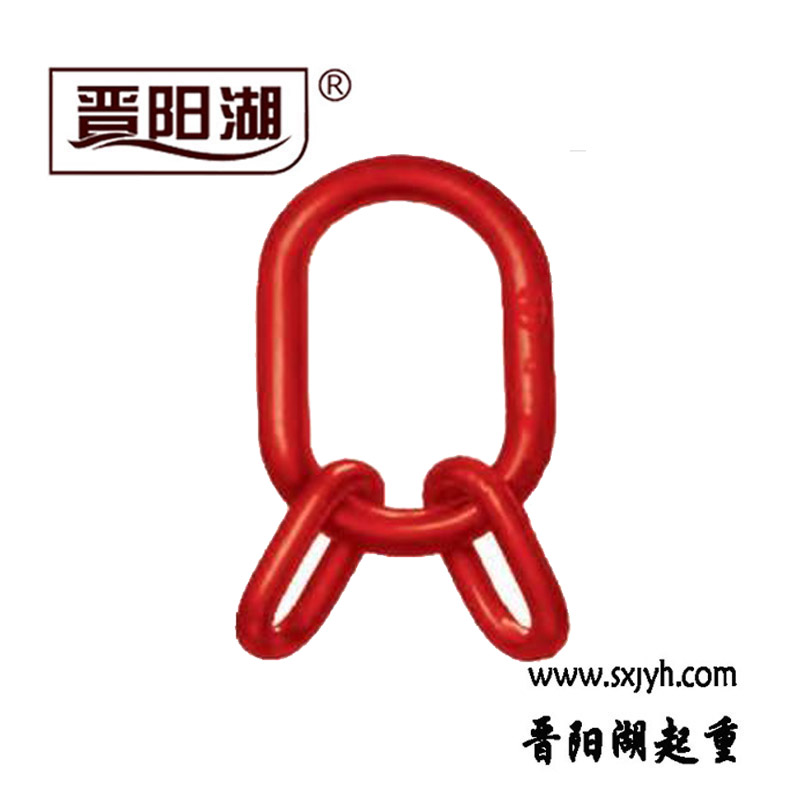

G80级子母环
|
ITEM NO. |
WLL/T |
B.L/T |
￠a(mm) |
B1(mm) |
C1(mm) |
￠b(mm) |
B2(mm) |
C3(mm) |
重量（kg） |
|
8-JYH-3/4 |
4T |
16 |
20 |
140 |
70 |
14 |
85 |
40 |
1.6 |
|
8-JYH--7/8 |
6T |
24 |
22 |
160 |
90 |
14 |
85 |
45 |
2.1 |
|
8-JYH-7/8 |
8T |
32 |
22 |
170 |
90 |
18 |
100 |
60 |
2.8 |
|
8-JYH-1 |
11T |
44 |
25 |
178 |
90 |
22 |
100 |
60 |
4 |
|
8-JYH-1-1/4 |
16T |
54 |
32 |
230 |
120 |
25 |
110 |
65 |
7.1 |
|
8-JYH-1-1/2 |
21.7T |
86.8 |
38 |
267 |
135 |
30 |
180 |
100 |
13.3 |
|
8-JYH-1-3/4 |
28.4T |
113.6 |
45 |
305 |
152 |
33 |
180 |
100 |
18.9 |
|
8-JYH-2 |
35T |
140 |
50 |
350 |
190 |
40 |
180 |
100 |
27.8 |
|
8-JYH-2-1/4 |
45T |
180 |
57 |
405 |
200 |
50 |
200 |
110 |
44.5 |
|
8-JYH-2-4/5 |
60T |
240 |
72 |
460 |
250 |
50 |
200 |
110 |
65.6 |
|
8-JYH-3-1/4 |
100T |
400 |
82 |
460 |
260 |
70 |
430 |
220 |
139 |
|
8-JYH-3-1/2 |
120T |
480 |
89 |
610 |
305 |
72 |
430 |
220 |
173.2 |
