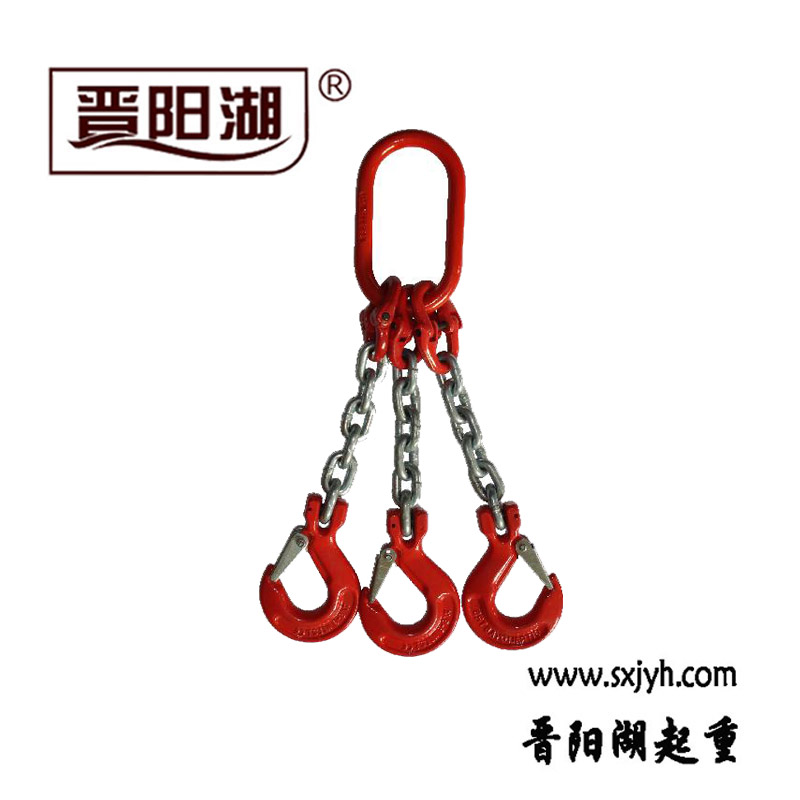

三肢链条索具包括S6级三肢链条索具和组装型T8级三肢链条索具，安全可达到4倍的安全系数。S6级三肢链条索具的额定载荷有2.1t、3.1t、5.2t、7.3t、10.5t、12.6t、16.8t……；组装型T8级三肢链条索具额定载荷包括2.35t、4.2t、6.61t、11.13t、16.38t、23.52t、31.5t、44.5t、66.15t。
三肢链条索具包括S(6)级三肢链条索具和组装型T(8)级三肢链条索具，安全可达到4倍的安全系数。S(6)级三肢链条索具的额定载荷有2.1t、3.1t、5.2t、7.3t、10.5t、12.6t、16.8t……；组装型T(8)级三肢链条索具额定载荷包括2.35t、4.2t、6.61t、11.13t、16.38t、23.52t、31.5t、44.5t、66.15t。
S(6)级三肢链条索具参数：
|
产品型号 |
链条直径 |
额定载荷 t |
主吊环 mm |
每米重量 |
链条重量 |
|
|
α≤45° |
45°＜α≤60° |
AxBxd |
||||
|
LSJ(H)3-6 |
6 |
2.1 |
1.5 |
80x150x20 |
5.79 |
0.79 |
|
LSJ(H)3-8 |
8 |
3.1 |
2.2 |
90x160x24 |
9.66 |
1.38 |
|
LSJ(H)3-10 |
10 |
5.2 |
3.7 |
100x190x28 |
18.47 |
2.2 |
|
LSJ(H)3-12 |
12 |
7.3 |
5.2 |
100x190x28 |
26.34 |
3.1 |
|
LSJ(H)3-14 |
14 |
10.5 |
7.5 |
120x230x34 |
32.04 |
4.13 |
|
LSJ(H)3-16 |
16 |
12.6 |
9 |
135x250x38 |
41.66 |
5.63 |
|
LSJ(H)3-18 |
18 |
16.8 |
12 |
140x270x42 |
51.56 |
6.85 |
|
LSJ(H)3-20 |
20 |
21 |
15 |
160x310x46 |
64.41 |
8.6 |
|
LSJ(H)3-22 |
22 |
25.2 |
18 |
180x330x52 |
119.3 |
10.2 |
|
LSJ(H)3-24 |
24 |
29.4 |
21 |
180x330x52 |
122.6 |
12.78 |
|
LSJ(H)3-26 |
26 |
35.7 |
25.5 |
180x330x56 |
196.99 |
14.87 |
|
LSJ(H)3-30 |
30 |
46.2 |
33 |
210x410x62 |
210.79 |
19.6 |
|
LSJ(H)3-34 |
34 |
60.9 |
43.5 |
240x410x76 |
361.32 |
22.7 |
|
产品型号 |
链条直径 |
额定载荷 t |
主吊环 mm |
每米重量 |
链条重量 |
|
|
α≤45° |
45°＜α≤60° |
AxBxd |
||||
|
LSJ3-6 |
6 |
2.35 |
1.68 |
75x135x18 |
5.79 |
0.79 |
|
LSJ3-8 |
8 |
4.2 |
3 |
90x160x22 |
9.66 |
1.38 |
|
LSJ3-10 |
10 |
6.61 |
4.72 |
100x190x28 |
18.47 |
2.2 |
|
LSJ3-13 |
13 |
11.13 |
7.95 |
110x200x32 |
26.34 |
3.8 |
|
LSJ3-16 |
16 |
16.38 |
11.7 |
140x260x35 |
32.04 |
5.63 |
|
LSJ3-20 |
20 |
23.52 |
16.8 |
190x350x50 |
41.66 |
8.6 |
|
LSJ3-22 |
22 |
31.5 |
22.5 |
190x350x50 |
150.42 |
10.2 |
|
LSJ3-26 |
26 |
44.5 |
31.8 |
200x400x60 |
253.27 |
14.87 |
|
LSJ3-32 |
32 |
66.15 |
47.25 |
250x460x70 |
324.8 |
22.29 |
选用标准：参照Q/JL018企业标准
安全保证：4倍安全系数
表面处理：抛光、发黑、镀锌、喷漆等
